NFC-42
4″ In-Ceiling Speaker

Description
Specifications

The goal was to create the finest architectural speakers available. How is such a lofty goal achieved? It starts with a management team that has been designing products for the architectural audio market for over 20 years. One of those products resides in our industry’s Hall of Fame. The team’s experience and engineering expertise is then combined with passion to create speakers that stand apart from the ordinary. To us, great speakers create great music. Our team is genuinely excited about music and still gets a thrill when we listen to our favorite music perfected on one of our newest creations. Of course each of our speakers is backed by our LIFETIME WARRANTY.

Key Features:

• Smooth Modern Flangeless Design
• One Piece Frame to Maximize Rigidity
• PRX™ Poly Resin CrossPoint Molds for Increased Rigidity
• PRX™ Poly Resin Doglegs
• Extra Wide Threaded Screws for Quick Dogleg Fastening
• XTS™ Moisture Seal Treated Crossover
• Gold Plated Spring Loaded Push Terminals
• Dual Coated (Zinc and Powder) Grill firmly attached with Neodymium Magnets
• Removable Scrim Cloth

Mechanical Specifications:

• Total Diameter w/ Grill: 7.5″ (190mm)
• Mounting Depth: 3.375″ (86mm)
• Cut Out Dimensions: 6″ (152mm)
• Pre-Construction: Use PCBC-6

Acoustic Specifications:

• 4″ (101.6mm) Aluminum Trueform™ Woofer
• 0.75″ (19.05mm) Aluminum HDAlloy™ Pivoting Tweeter
• 5/95 WPC Power handling
• 86dB SPL
• Frequency Response 58Hz – 20kHz
• Impedance 8 Ohms
• LIFETIME WARRANTY

divider

Search all our Manuals and Specifications in the IRC database.

or Download the PDFs:    Manual>>>    Specs>>>    CAD>>>

TDG-Audio-NFC-Series-Speakers-Feature-Callouts-LTR-4
Download the PDF of this image here>>> or the feature closeup version here>>>

NFC Series Features

Circuit Board Epoxy Resin

Epoxy Resin Coated

Most speakers include an integrated rear debris cover and an XTS™ treated crossover for moisture protection.

magnet gap

Grill Magnet Gap

Numerous neodymium magnets raised 0.5mm above the flange surface eliminates resonate frequency rattle.

prethreaded dogleg

Pre-Threaded Dogleg

The pre-threaded, extra-wide screws allow for smooth and secure dogleg fastening with less chance of cracking.

two part dogleg

Two-Part Dogleg

Detachable two-part dogleg adaptable to surfaces ranging from zero to 1.5 inches thick.

EZ grip tweeter bridge

EZ Grip Tweeter Bridge

The EZ hold tweeter bridge aids in easy installation.

Lifetime Warranty

Lifetime Warranty

All TDG Audio speakers are covered by our Limited Lifetime Warranty.

Slide
COMPARISON CHART

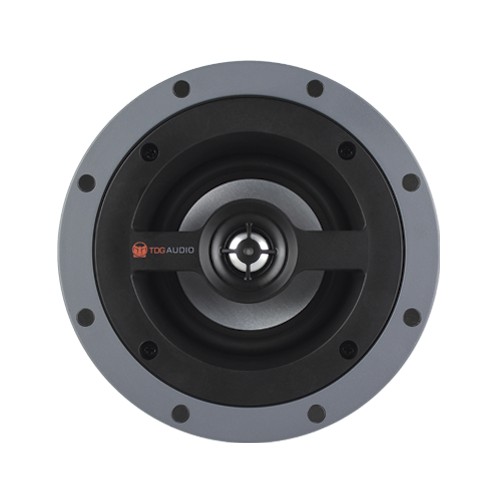

NFC-42-4-inch-in-ceiling-speaker
NFC-42
4″ IN-CEILING SPEAKER

4″ Aluminum Trueform™ Woofer
--------------------------------------------------
0.75″ Aluminum HDAlloy™ Pivoting Tweeter
--------------------------------------------------
5/95 WPC Power handling
--------------------------------------------------
86db SPL
--------------------------------------------------
Frequency Response 58Hz – 20kHz
--------------------------------------------------
Impedance 8 Ohms
--------------------------------------------------
LIFETIME WARRANTY

NFC-61STT-6-inch-in-ceiling-stereo-speaker
NFC-61STT
6.5” IN-CEILING STEREO SPEAKER

DVC 6.5” Polypropylene Trueform™ Woofer
--------------------------------------------------
1″ STT Soft Dome Pivoting Tweeter
--------------------------------------------------
+/- 3db Tweeter & Bass Settings
--------------------------------------------------
5/90 WPC Power handling
--------------------------------------------------
88db SPL
--------------------------------------------------
Impedance 8/6/4 Ohms
--------------------------------------------------
Frequency Response 48Hz – 20kHz
--------------------------------------------------
LIFETIME WARRANTY

NFC-62-6-inch-in-ceiling-speaker
NFC-62
6.5” IN-CEILING SPEAKER

6.5″ Aluminum Trueform™ Woofer
--------------------------------------------------
1″ Aluminum HDAlloy™ Pivoting Tweeter
--------------------------------------------------
+/- 3db Tweeter & Bass Settings
--------------------------------------------------
5/110 WPC Power handling
--------------------------------------------------
88db SPL
--------------------------------------------------
Impedance 8/6/4 Ohms
--------------------------------------------------
Frequency Response 47Hz – 20kHz
--------------------------------------------------
LIFETIME WARRANTY
